Description

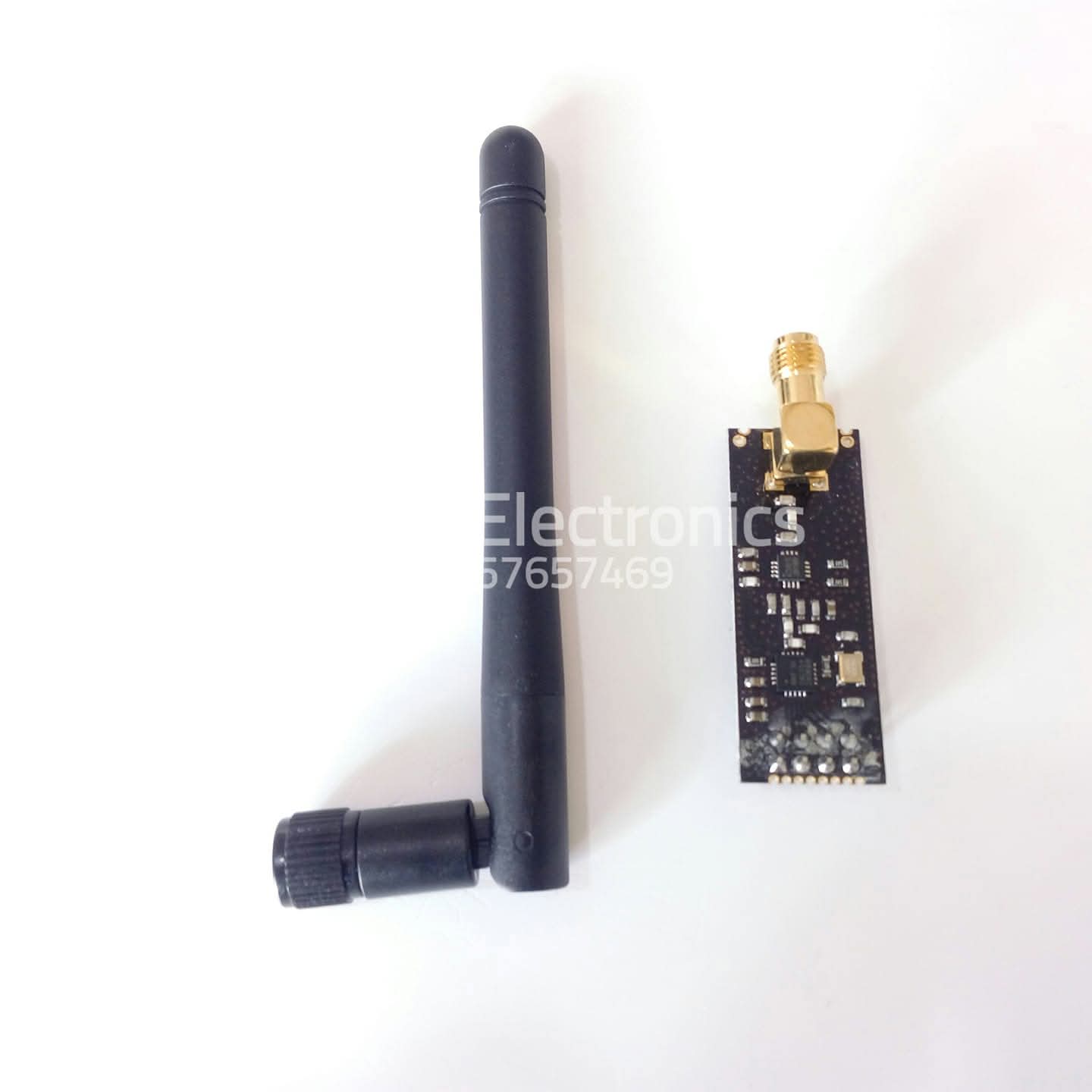

2.4GHz Long Distance NRF24L01+PA+LNA Wireless Transceiver
Uses 2.4G Global open ISM Band
Support six-channel data reception.
2Mbit/s speed makes high-quality VoIP
Low Operating Voltage: 2.7 to 3.6V
Multi-Frequency Points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
SPI interface facilitates the communication with MCU I/O port.
Specification
Operating Frequency: 2400MHz ~ 2524MHz
Modulation: GMSK
Transmit power: more than +20 dBm, 50?
Receiver sensitivity:-95dbm
Operating voltage: 2.7V ~ 3.6V
Max Emission current: 115mA
Max Receive current: 45mA
Operating temperature: -45 degrees to +85 degrees
Storage temperature: -45 degrees to +125 degrees
Gain Of PA: 20 dB
Gain Of LNA: 10 dB
